خط إيتون التفاعلي 5 إي جي 2 1600 يو إس بي دين 1600 فولت أمبير 900 واط ، الإدخال: كابل شوكو 1,4 متر ، الإخراج: 4 شوكو ، برج
المزدوج دفعة أفر (تنظيم الجهد التلقائي). إعادة شحن البطارية الدائمة. بداية باردة. تصميم مضغوط. بدون مروحة / صامت ، هيد المتوافقة منفذ أوسب ، للتكامل التلقائي مع أنظمة التشغيل الرئيسية (ويندوز / ماك أوس / لينكس)

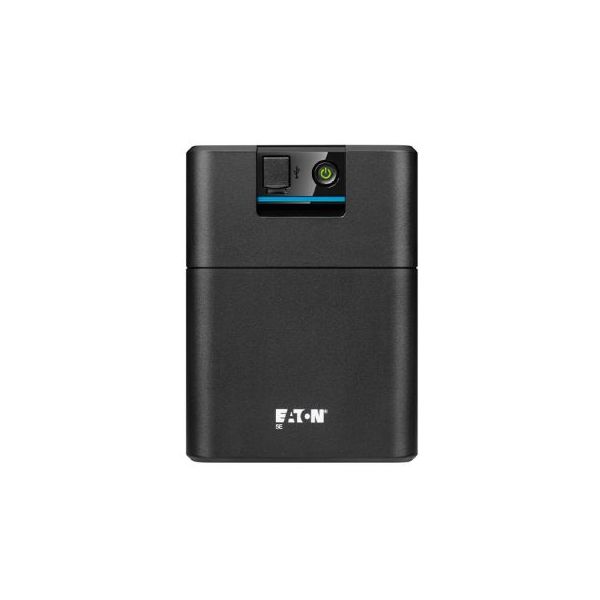

| PRODUCT NAME | Eaton 5E Gen2 UPS |
| CATALOG NUMBER | 5E1600UD |
| EAN | 3553340704345 |
| PRODUCT LENGTH/DEPTH | 330 mm |
| PRODUCT HEIGHT | 180 mm |
| PRODUCT WIDTH | 133 mm |
| PRODUCT WEIGHT | 9.26 kg |
| WARRANTY | 2 year |
| COMPLIANCES | CB LVD Directive EMC Directive RoHS Directive Packaging Directive WEEE Directive Batteries Directive |
| CERTIFICATIONS | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC Ukr IEC/EN 62040-3 UKCA Cm |
| SECONDARY FREQUENCY - MAX | 60 Hz |
| WATTAGE | 480 W |
| FORM FACTOR | Tower |
| INCLUDES NETWORK CARD | No |
| INPUT CONNECTION | Protective contact (SCHUKO) |
| INPUT VOLTAGE - MIN | 140 V |
| OUTPUT VOLTAGE - MAX | 257 V |
| SECONDARY FREQUENCY - MIN | 50 Hz |
| SOFTWARE COMPATIBILITY | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| BATTERY TYPE | Sealed, lead-acid |
| EFFICIENCY | 95 |
| SPECIAL FEATURES | Automatic Voltage Regulation (AVR) Saves space with a compact tower design HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux) Includes two Schuko (DIN) Outlets |
| CONSTRUCTION TYPE | Free standing model |
| OUTPUT VOLTAGE - MIN | 195 V |
| COLOR | Black |
| EXTENDED BATTERY CAPABILITY | No |
| OUTPUT VOLTAGE RANGE | 195-257 V |
| TOPOLOGY | Line-interactive |
| SURGE PROTECTION | Yes |
| INPUT NOMINAL VOLTAGE | 230V default (220/230/240V) |
| INPUT FREQUENCY RANGE | 45-63 Hz |
| INTERNAL BYPASS | No |
| INPUT VOLTAGE - MAX | 300 V |
| VOLTAGE TYPE | AC |
| PHASE (OUTPUT) | 1 |
| BATTERY MANAGEMENT | Automatic battery test, deep-discharge protection, cold-start capable |
| AUTO SHUTDOWN FUNCTION | Yes |
| OPERATING TEMPERATURE - MIN | 0 °C |
| VA RATING | 850 VA |
| POTENTIAL FREE SWITCH CONTACT | No |
| OPERATING TEMPERATURE - MAX | 40 °C |
| OUTPUT POWER FACTOR | 0.6 |
| OUTPUT CONNECTIONS | 2 x Schuko (DIN) Outlet |
| OUTPUT POWER CAPACITY | 1600 VA / 960 W |
| PRODUCT NAME | Eaton 5E Gen2 UPS |
| CATALOG NUMBER | 5E1600UD |
| EAN | 3553340704345 |
| PRODUCT LENGTH/DEPTH | 330 mm |
| PRODUCT HEIGHT | 180 mm |
| PRODUCT WIDTH | 133 mm |
| PRODUCT WEIGHT | 9.26 kg |
| WARRANTY | 2 years |
| COMPLIANCES | CB LVD Directive EMC Directive RoHS Directive Packaging Directive WEEE Directive Batteries Directive |
| CERTIFICATIONS | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC Ukr IEC/EN 62040-3 UKCA Cm |
