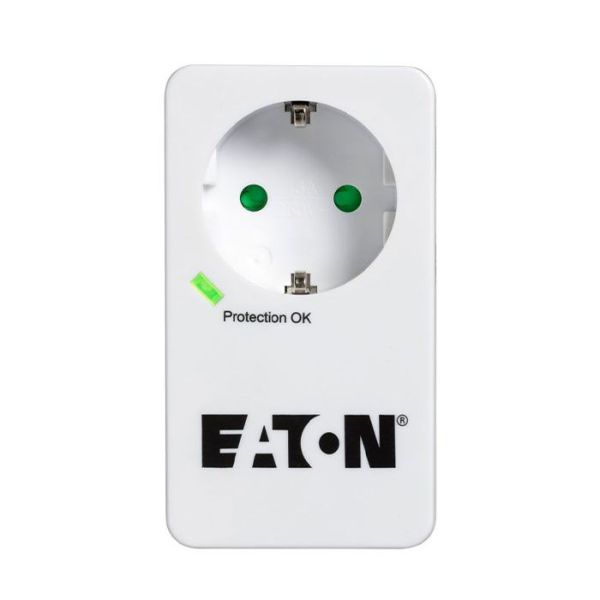

صندوق حماية إيتون من زيادة التيار 1 DIN، 10A
جهاز حماية من زيادة التيار المتطور يستخدم مقبس Schuko (DIN)، متوافق مع IEC 61643-11
| PRODUCT NAME | Eaton Protection Box |
| CATALOG NUMBER | PB1D |
| EAN | 3553340667152 |
| PRODUCT LENGTH/DEPTH | 98 mm |
| PRODUCT HEIGHT | 55 mm |
| PRODUCT WIDTH | 72.5 mm |
| PRODUCT WEIGHT | 0.115 kg |
| WARRANTY | 2 year |
| COMPLIANCES | EAC CE Marked |
| CERTIFICATIONS | IEC/EN 60884-1 IEC/EN 61643-11 |
| MODEL CODE | Eaton Protection Box 1 DIN |
| PHASE | Single-phase |
| NUMBER OF NEMA-OUTLETS | 0 |
| OPERATING TEMPERATURE - MIN | 0 °C |
| NUMBER OF OUTLETS | 1 |
| RAL-NUMBER | 9003 |
| HOUSING SHAPE | Rectangular |
| SWITCHABLE | Yes |
| SURFACE FINISH | Matt/Matte |
| MOUNTING METHOD | 35 mm DIN rail |
| AMPERAGE RATING | 10A |
| INPUT CONNECTION | Protective contact (SCHUKO) |
| PACKAGE CONTENTS | Surge suppressor device Quickstart guide |
| MATERIAL QUALITY | Other |
| POWER CORD LENGTH | 0 |
| NEMA DESIGNATION | None |
| SURGE RATING | 1500 V |
| FITTED WITH: | Fuse Over voltage protection LED indication |
| OPERATING TEMPERATURE - MAX | 40 °C |
| DEGREE OF PROTECTION | IP20 |
| CIRCUIT BREAKER | No |
| CORE CROSS SECTION | 0 mm² |
| SPECIAL FEATURES | High-end surge protection device implementing Schuko (DIN) socket, IEC 61643-11 compliant, including connected equipment warranty |
| NUMBER OF USB CONNECTIONS | 0 |
| COLOR | Black/white |
| RESIDUAL CURRENT CIRCUIT BREAKER | No |
| MATERIAL | Plastic |
| SURGE CURRENT | 3000A |
| ANGLE OF ROTATED CENTRAL INSERT | Other |
| TYPE | Surge Suppressor |
| HALOGEN FREE | No |
| INDICATOR TYPE | Color LED |
| OPERATING VOLTAGE | 220-250 V |
| TRANSPARENT | No |
| SURFACE PROTECTION | Other |
| NUMBER OF SOCKET OUTLETS WITH PROTECTIVE CONTACT | 1 |
| NOMINAL FREQUENCY | 50-60 Hz |
| INTERNET/TEL LINE PROTECTION | No |
